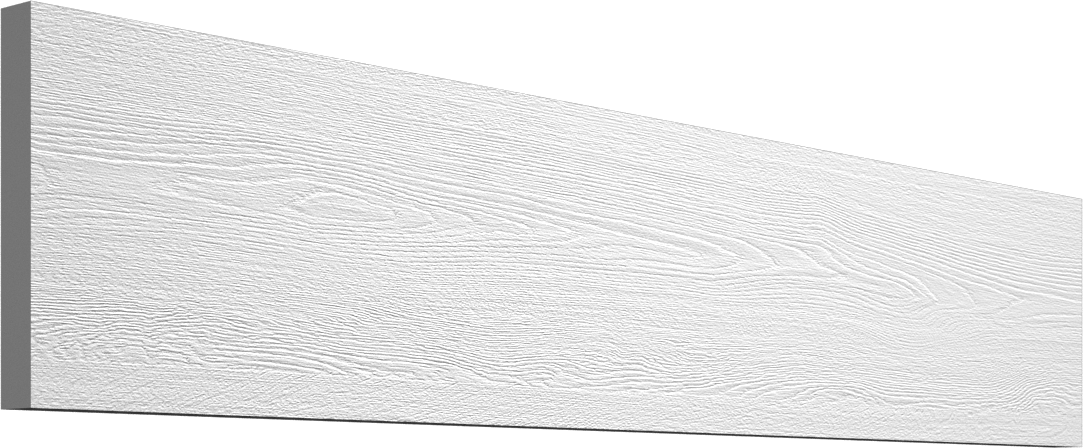

| SKU | Hauteur | Projection | Longueur | Dessins CAD PDF | Dessins CAD DWG | Dessins CAD DXF | |
|---|---|---|---|---|---|---|---|
| AK-3-18-75 | 2 1/2" | 3/4" | 18' | - | - | - | |
| AK-3-9-75 | 2 1/2" | 3/4" | 9' | - | - | - | |
| AK-4-18-75 | 3 1/2" | 3/4" | 18' | DWG | DXF | ||
| AK-4-9-75 | 3 1/2" | 3/4" | 9' | - | - | - | |
| AK-5-18-75 | 4 1/2" | 3/4" | 18' | - | - | - | |
| AK-5-9-75 | 4 1/2" | 3/4" | 9' | - | - | - | |
| AK-6-18-75 | 5 1/2" | 3/4" | 18' | DWG | DXF | ||
| AK-6-9-75 | 5 1/2" | 3/4" | 9' | - | - | - | |
| AK-8-18-75 | 7 1/4" | 3/4" | 18' | DWG | DXF | ||
| AK-8-9-75 | 7 1/4" | 3/4" | 9' | - | - | - | |
| AK-10-18-75 | 9 1/4" | 3/4" | 18' | - | - | - | |
| AK-10-9-75 | 9 1/4" | 3/4" | 9' | - | - | - | |
| AK-12-18-75 | 11 1/4" | 3/4" | 18' | DWG | DXF | ||
| AK-12-9-75 | 11 1/4" | 3/4" | 9' | - | - | - | |
| AK-16-18-75 | 15 1/4" | 3/4" | 18' | - | - | - | |
| AK-16-9-75 | 15 1/4" | 3/4" | 9' | - | - | - | |
| AK-3-18-100 | 2 1/2" | 1" | 18' | - | - | - | |
| AK-3-9-100 | 2 1/2" | 1" | 9' | - | - | - | |
| AK-4-18-100 | 3 1/2" | 1" | 18' | DWG | DXF | ||
| AK-4-9-100 | 3 1/2" | 1" | 9' | - | - | - | |
| AK-6-18-100 | 5 1/2" | 1" | 18' | DWG | DXF | ||
| AK-6-9-100 | 5 1/2" | 1" | 9' | - | - | - | |
| AK-8-18-100 | 7 1/4" | 1" | 18' | DWG | DXF | ||
| AK-8-9-100 | 7 1/4" | 1" | 9' | - | - | - | |
| AK-10-18-100 | 9 1/4" | 1" | 18' | - | - | - | |
| AK-10-9-100 | 9 1/4" | 1" | 9' | - | - | - |
Guide d'installation général
Guide d'installation pour moulures et corniches
| Hauteur | 11 1/4", 15 1/4", 2 1/2", 3 1/2", 4 1/2", 5 1/2", 7 1/4", 9 1/4" |
|---|---|
| Projection | 3/4", 1" |
| Longueur | 18', 9' |
| Dessins CAD PDF | 14233, 14250, 14260, 14274, 14284, 14294, 14304, – |
| Dessins CAD DWG | 14235, 14252, 14262, 14276, 14286, 14296, 14306, – |
| Dessins CAD DXF | -, 14237, 14254, 14264, 14278, 14288, 14298, 14308 |
