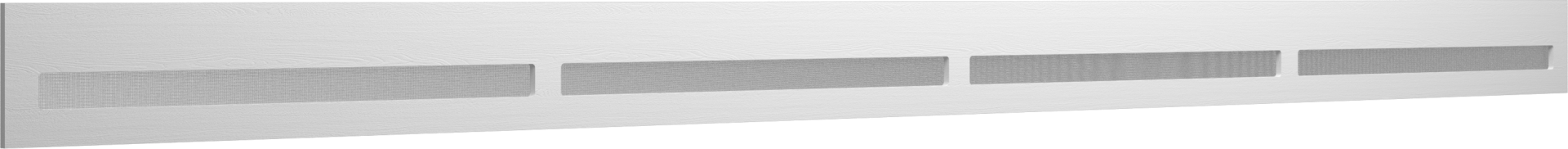

AKF-VENT1 - Frontier Vented Soffit Board (Large Opening)

SKU Quantity Width Projection Length CAD PDF drawings CAD DWG drawings CAD DXF drawings
AKF-VENT1-8-12-50 17 3/4″1/2"144″PDFDWGDXF
AKF-VENT1-12-12-50 111 3/4″1/2"144″PDFDWGDXF
AKF-VENT1-16-12-50 115 3/4″1/2"144″PDFDWGDXF

Additional notes

Quantity: Indicates the number of ventilation openings across the width of the product

Installation guides

General Installation Guide

SKU: AKF-VENT1 Category: Tag:

Additional information

Quantity

1

Width

11 3/4″, 15 3/4″, 7 3/4″

Projection

1/2"

Length

144″

CAD PDF drawings

CAD DWG drawings

CAD DXF drawings
